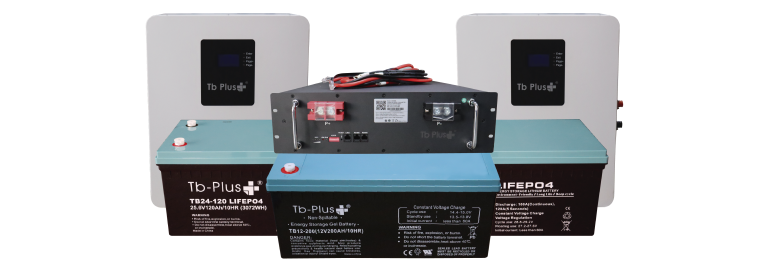

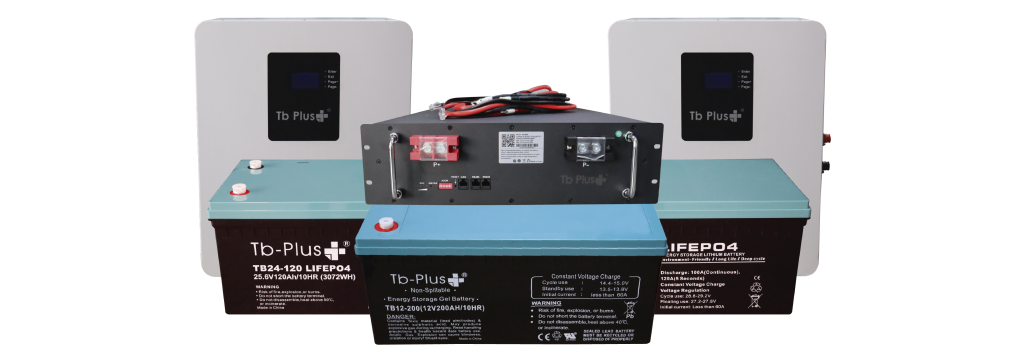

Battery Storage Solutions in Gel and Lithium Technologies
Reliable and efficient technology designed to ensure continuous, safe energy adapted to diverse power needs.
At Tb Plus Energy, we integrate storage systems based on Gel and Lithium batteries, engineered to deliver high performance, durability, and reliable backup for residential, commercial, and industrial applications.

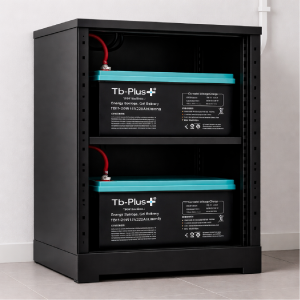

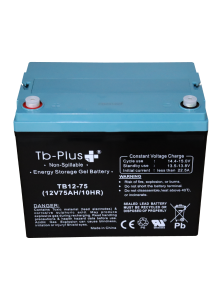

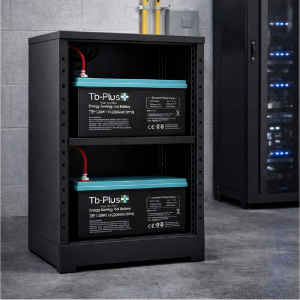

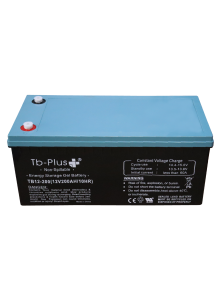

Gel Batteries
Gel batteries are a robust, low-maintenance solution ideal for solar systems and applications that require long autonomy periods. Their internal composition, based on gelified electrolyte, provides enhanced safety, resistance to deep discharges, and stable performance under varying environmental conditions.
Benefits
- High resistance to deep discharges
- Sealed and safe technology
- Stable operation in extreme climates
- Cost-effective and durable option
Technical Specifications
- Nominal Voltage: 12V
- Operating Temperature: -20°C (-4°F) ~ 50°C (122°F)
- Charging Temperature: 0°C (32°F) ~ 40°C (104°F)
- Discharging Temperature: -20°C (-4°F) ~ 50°C (122°F)
- Storage Temperature: -20°C (-4°F) ~ 40°C (104°F)
Lithium Batteries
Lithium batteries are the most advanced solution for modern energy storage. They offer superior performance, higher energy density, extended lifespan, and rapid response capabilities.
At Tb Plus Energy, we work with block, rack, and wall-mounted configurations adapted to different project requirements and demand levels.

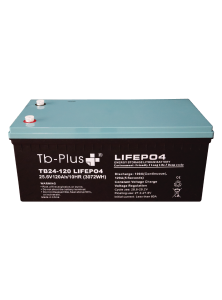

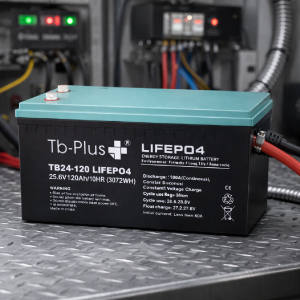

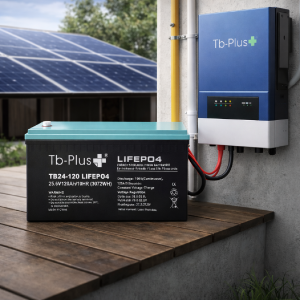

Block-Type Lithium Batteries
Compact, stand-alone units designed for installations that require reliable storage without occupying large spaces. Their modular design allows easy expansion and seamless integration with modern inverters.
Benefits
- Compact and modular
- High performance
- Long service life
- Easy installation

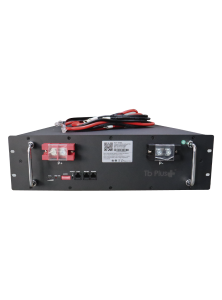

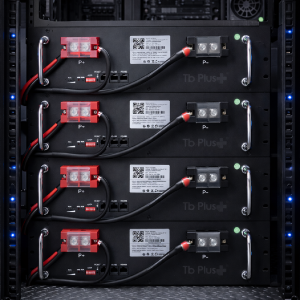

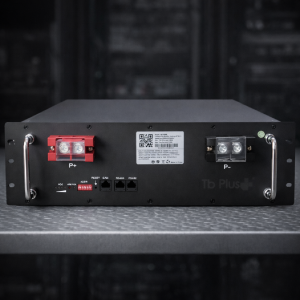

Rack-Type Lithium Batteries
Industrial storage solutions designed in rack-mounted cabinets, engineered to deliver high capacity, safety, and centralized management. Their architecture enables scalability depending on the project’s energy requirements.
Benefits
- Scalable solution
- Intelligent management
- High storage capacity
- Professional integration
Technical Specifications
- Nominal Voltage: 51.2V
- Nominal Energy: 5120Wh
- Self-discharge Rate: ≤3.5% monthly
- Cycle Life: ≥ 6000 cycles
- Recommended Charging Voltage: 56.0V – 57.6V
- Recommended Charging Current: 50A
- Recommended Discharge Current: 50A
- Communication Interface: RS485/CAN
- Safety Standard: UN38.3
- Ingress Protection: IP30

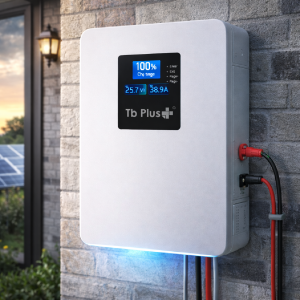

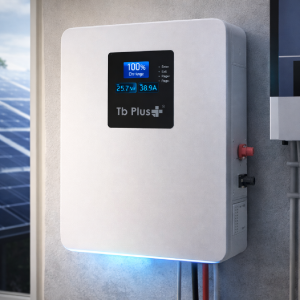

Wall-Mounted Lithium Batteries
Elegant, slim, and high-efficiency solutions designed for installations where floor space is limited. Their modern design allows energy storage integration without affecting the aesthetic of the space.
Benefits
- Slim and compact design
- Quiet and efficient operation
- High safety standards
- Aesthetic integration
Technical Specifications
- Nominal Voltage: 48V
- Nominal Capacity: 100Ah
- Voltage Range: 37.5V – 54.75V
- Nominal Energy: 4800Wh
- Cycle Life: ≥ 6000 cycles
- Certifications: CE / UN38.3
- Communication: RS485/CAN
Manual de producto
Fichas técnicas
Engineer-Designed Solutions Built for the Future of Energy
At Tb Plus Energy, we size, integrate, and install storage systems with technical precision and continuous support. Each project is tailored to the user’s needs, ensuring reliability, efficiency, and long-term performance.
